How to make a critical to quality tree

Reading time: about 6 min

Topics:

Identify critical needs.
Identify quality drivers.
Identify performance requirements.
Repeat for each customer need.

Most business leaders have an elevator pitch ready to be delivered at a moment’s notice for their product. This short description is meant to entice, inspire, and either gain funding or gain customers.

But being able to deliver a short description of your product to investors and being able to identify the most critical aspects of your product’s quality to customers are two entirely different propositions. You might be able to entice investors with your description, but to entice potential customers and drive them to buy, you'll have to do more: Your product needs to be mapped to your customer’s needs, and in order to properly fulfill those needs, you’ll need to first understand what your customers want.

Critical to quality trees, or CTQ trees, help your team identify what your customers truly want so you can organize processes to meet those demands. These visuals are a strategic part of developing a high-quality product that can continuously evolve and withstand an ever-changing market.

Here, you’ll find each step of developing a CTQ tree so you can translate the needs of your customers into actionable tasks for your organization. Read on for CTQ tree examples and tools that can help you deliver a delightful, high-quality product.

What is a CTQ tree?

A critical to quality tree is actually a diagram (and you’re in luck because diagramming is kind of our thing). The tree starts with a critical need and then branches out to critical drivers, then requirements.

Continue to our step-by-step tutorial to learn more about identifying critical needs and drivers.

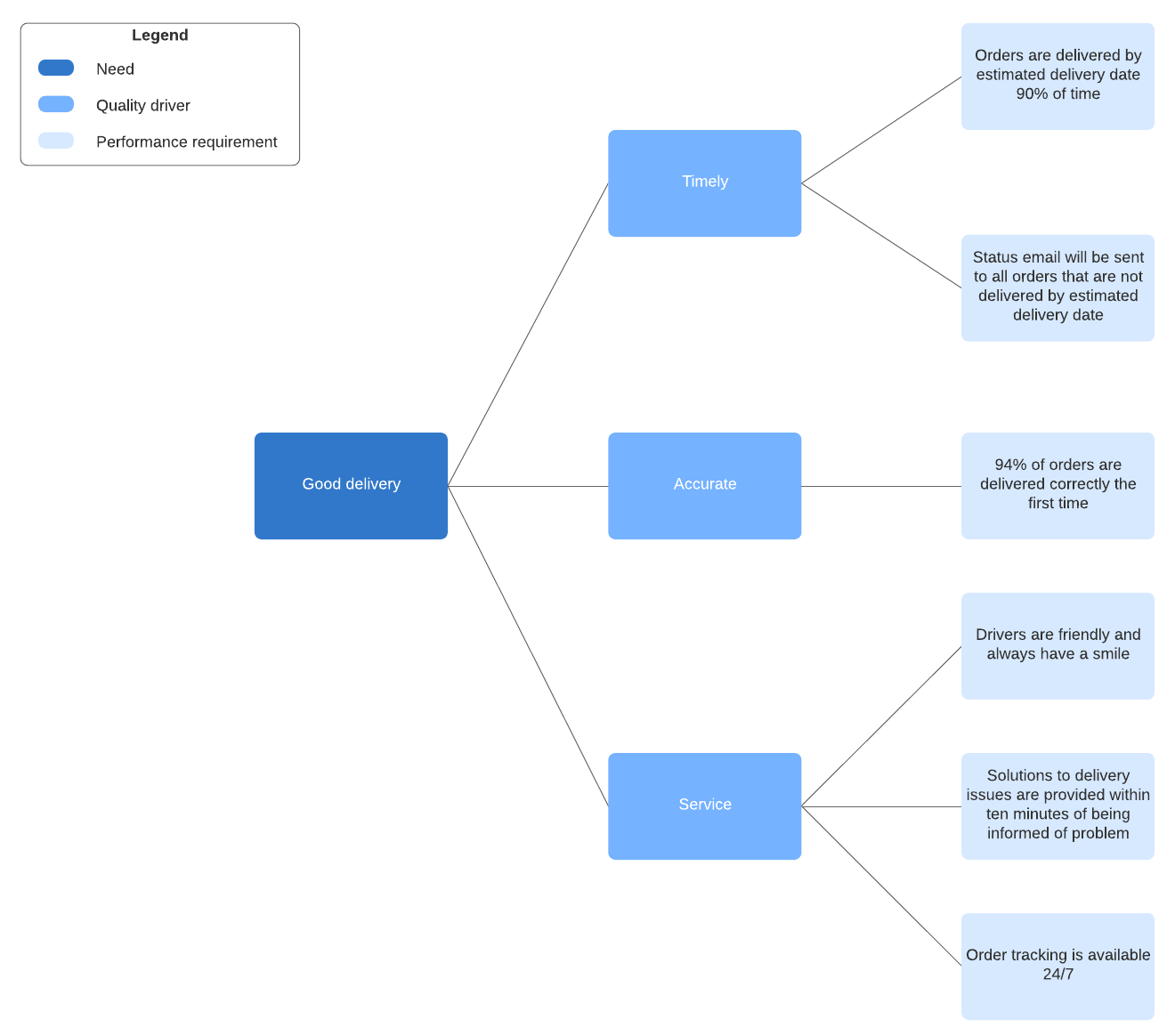

Critical to quality tree example template (Click on image to modify online)

When to use a CTQ tree

CTQ trees are frequently used as part of the Six Sigma process. If you’ve implemented DMAIC methodology, CTQ trees fall under the “define” stage. However, you don’t necessarily need to implement Six Sigma to benefit from a CTQ tree.

If you’re using the CTQ tree on its own and not as part of a larger methodology, you’ll still come away with actionable solutions for delivering a better product. You should create a critical to quality tree after you research the voice of the customer and start to identify customer needs. It’s useful to build a CTQ tree:

When you wish to develop a better product
Before launching a product or project
To better understand your customer’s needs and wants
To help your product or service be more competitive in the market
To identify and resolve issues with a current product or service

How to make a critical to quality tree

To help better illustrate the concept of a CTQ tree, we’ll be using a CTQ tree example of a company that delivers cookies.

There are three important steps to developing a CTQ tree:

1. Identify critical needs

Do not base critical needs on your beliefs of what customers require: Ask the customers. Many companies go to great lengths to gather information on the voice of the customer to inform their critical needs. Some techniques include:

Surveys
Interviews and recorded calls
Customer behavior data
Customer reviews

Make sure to ask your customer service representatives or other customer-facing teams about the needs customers have most often. Use that data to inform the critical needs you select.

For our cookie delivery service example, the primary need we’ll work with is “I want a warm, homemade cookie without leaving my house.” (Don't we all?) While we’re working with only one critical need in our example, your organization may identify a dozen or more for your product or service.

Use a free Lucidchart template to translate your voice of the customer research into actionable data.

Try it

2. Identify quality drivers

Quality drivers are the specific factors that customers will evaluate to determine whether you have sufficiently met their needs and delivered a quality product. If you don't meet these quality drivers, your customers will not be satisfied. This is a great time to brainstorm and take advantage of internal resources like a customer support team.

To illustrate this point, we’ve shown what our imaginary customers require to believe they’re receiving a high-quality cookie and cookie delivery experience:

An effective app to place orders
Fast cookie delivery
Delicious cookies

3. Identify performance requirements

Finally, in order to deliver the quality drivers above, you’ll need to meet certain performance requirements. You can’t, for instance, just develop an app to place orders if it’s never updated or if the menu is outdated. Here are some performance requirements we’ve identified for each quality driver above. Bear in mind, your company may identify many more or fewer performance requirements. These are just examples:

An app to place orders
- Must be viewable on all devices
- Must include a way to track and view open order
- Must be easy to operate
Fast cookie delivery
- Maintain heat of cookies through travel
- Must be delivered within 30 minutes of placing order
Delicious cookies
- High-quality ingredients (extra chunky)
- Original, unique recipes

CTQ tree template

Now that you understand the steps to developing a critical to quality tree, it’s time to put them to work. Use the CTQ tree template provided below to build a tree for each critical need:

Critical to quality tree template (Click on image to modify online)

Putting your CTQ into action

Though understanding the needs of your customers is a great project in itself, knowledge without action is often futile. You’ll notice at the far right of your template that you end up with performance requirements that you can easily turn into projects.

Let’s use the “app to place orders” quality driver as an example. You now know that you must develop an app, which can be the goal of a sprint or a project. You also know that the scope of the project must include the performance requirements:

Must be viewable on all devices
Must include a way to track and view open order
Must be easy to operate

By putting forth the effort to understand your customer’s needs, not only have you defined the requirements for your product or service, but you’ve also set forth a clear path to developing a successful product. And you’ve also taken the guesswork out of developing scopes for projects while making sure the team understands what the ultimate aim of the product or service is.

Another benefit to CTQ trees is that they give you ways to measure success. You’ll notice that they help you quantify performance requirements, such as if the app is viewable on all devices, as opposed to just compiling customer feedback. Once you have performance requirements, you can plan how to meet and measure those requirements.

Critical to quality trees help you distill nebulous customer needs into an action plan for success. Using a template for your CTQ is an easy way to guide your team from a jumble of customer feedback to calculated, efficient improvement.

You may find that there are many critical needs, quality drivers, and performance requirements for your product, so we recommend using a tool that can be easily updated in real time, shared with your team and other stakeholders, and saved to the cloud. When you can visually identify how each performance requirement feeds into a critical need, you can keep your team motivated and aligned to a common goal.
